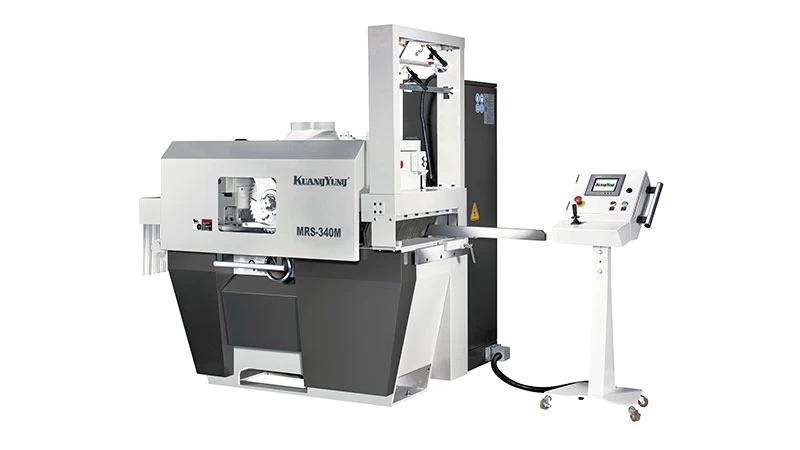

Movable Rip Saw
MRS-340M (Joystick)
Joystick Optimizing Movable Rip Saw

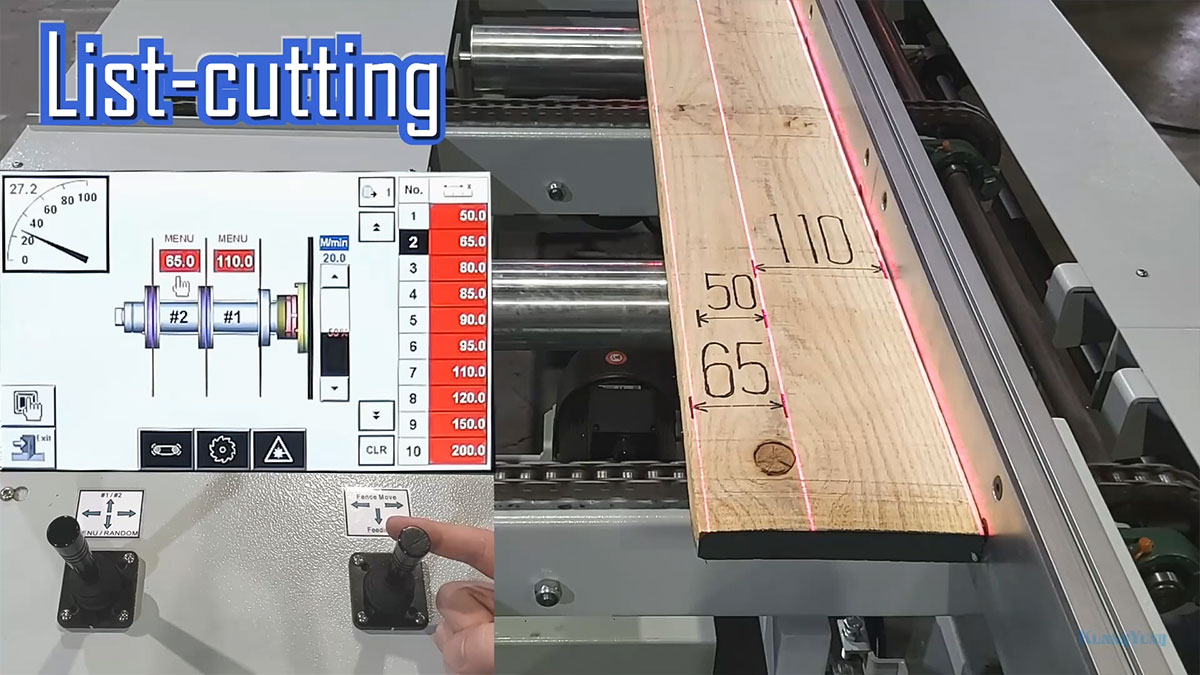

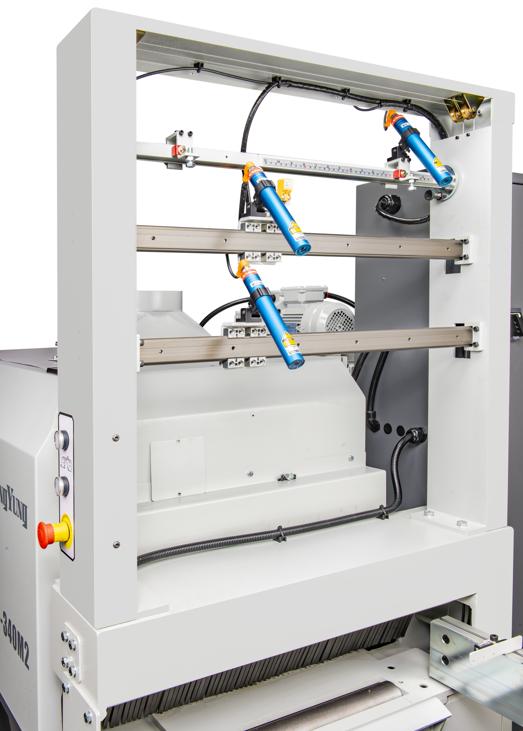

Saw blades moving control by the joystick with laser beam guide to choose the optimized area or avoid defects and optimized ripping, thus to achieve the best yield effects.
Main Features
- Maximum 3 moving saw blades compatible with multiple fixed saw blades to complete the work of cutting width and edging on single timber. One movable saw can replace 2~3 units of Single rip sa
- Adopt with the color touch screen for operation, guide the operation with the icons, easy learning.
- Utilization and electrical current using amount can put in statistics and can be conversed to carbon emissions to cater ESG and net-zero emssision trend(optional).
- 7~10% increase in yield compare with conventional multiple rip saw.
- Allow single person to operate the machine.
- The operating position is out of harms way from kickbacks.
Anti-Kickback Guarding System
- Hardened steel anti-kickback finger system (2 upper rows and 1 bottom row) are engineered for greater operator safety.
Sleeve-Type Multiple Rip Saw (Optional)
- With Optional accessory, the machine can be worked as a sleeve-type multiple rip saw.
Specially Designed Feed Chain With Replaceable Surface Pads
- Two replaceable surface pads are available:
- Rubber surface pads that do not damage the wood surface.
- Forged surface pads for processing the board with rough surface.
Mechanical Lubricator
- The mechanical oil supply design can avoid the risk of electronic failure and ensure that the feed chain is always oiled.
- The oil amount can be automatically adjusted according to the feed speed.
- The oil supply pressure can reach 100KGS,which can avoid the oil holes being stuffed with wood chips.
Specification
| MRS-340M | |
|---|---|
| Max. cutting thickness for movable saw mode | 100 mm (14") , 75 mm (12") |
| Min. working length | 1.1M (3.6') |
| Max. working length | 4M (13'), 5M (16.5')(Optional) |
| Numbers of movable saw blade | 1 ~ 3sets |
| Movable saw traverse (from fixed saw) | 20mm ~ 340mm (0.79" ~ 13.38") |
| Max. saw blade diameter | Ø355mm (14") |
| Min. saw blade diameter | Ø305mm (12") |
| Saw blade hole diameter | Ø90mm |
| Saw arbor diameter | Ø70mm |
| Saw arbor speed | 3800rpm (50Hz, 60Hz)(14") / 4200rpm (50Hz), 4500rpm (60Hz)(12") |
| Saw arbor motor | 30HP, 40HP, 50HP or 60HP |
| Feed motor | 3 HP |
| Feed speed | 12 ~ 40m/min |
| Hold down roller elevating motor | 1/2 HP |
| Saw arbor elevation motor | 1/2 HP |
| Dust suction hole diameter | Ø100mmx 1,Ø200mm x 1 |
*We reserve the right to amend any of the above specifications without prior notice.
