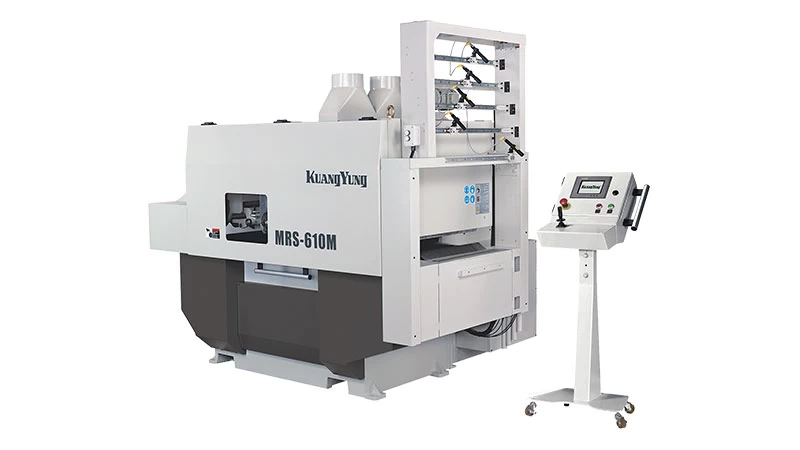

Movable Rip Saw
MRS-610M (Joystick)
Tags :
Movable
Optimizing
Joystick Semi-Optimizing Movable Rip Saw
The MRS-610M features advanced rip saw blade technology and a user-friendly woodworking machine design. Easy to operate with an IPC, controller, and intuitive touch panel, it ensures precise and efficient rip sawing, making it ideal for professionals seeking reliable and consistent performance.
Main Features
- Choice of 1-6 movable blades
- Extra large 610mm cutting width
- Optimizing cut function
Features Of Movable Rip Saw
- Employs a touch screen for easy operation and learning.
- All functions displayed on the screen.
- The instructional cutting width setting provides optimum system calculation, made easier with icons and graphic display.
- The IPC computer provides unlimited settings for cutting dimension capacity to meet flexible production demands.
- Convenient troubleshooting is achieved through the computer display.
- The movable rip saw blade is driven by a servomotor, featuring fast movement and outstanding positioning accuracy.
Anti-Kickback Guarding System
- Hardened steel anti-kickback finger system (2 upper rows and 1 bottom row) are engineered for greater operator safety.
- One row of anti-backward fingers is positioned in front of first roller to prevent the wood from being pushed back during cutting.
- A specially designed roller, located in front of the first steel anti-kickback fingers, ensures a smoother feeding.
Special Pressure Device (Patented)
- The specially designed pressure device holds wood more stable. As a result, wood can be used directly for composing after cutting.
- Saw arbor support maximum stability of saw arbor is achieved through the firm support at end.
Specially Design Feed Chain with Replacebale Surface Pads
- Two replaceable surface pads are available:
- Rubber surface pads that do not damage the wood surface.
- Forged surface pads for processing the board with rough surface.
Pneumatic Feed Rollers
- The complete feed rollers are air-loaded to ensure outstanding stability during cutting and smooth feeding effect.
- Pressure for each feed roller can be individually adjusted from the centralized pressure regulators.
- Pressure for each feed roller is indicated by individual pressure gauge.
2.2-2.6 mm Ultrathin Saw Blade
- Ultrathin patented saw blade (2.2~2.6 mm) is able to do panel joint ripping.
- Max. ripping speed reaches 60m/min.
Comprehensive Lubrication System
- The manual central lubricator provides proper lubricant to the ball screws which ensure that all movable saws operate smoothly.
Mechanical Lubricator
- The mechanical oil supply design can ensure that the feed chain is always oiled.
- The oil amount can be automatically adjusted according to the feed speed.
Specification
| MRS-610M | |
|---|---|
| Max. cutting thickness of movable saw | 60 mm (12" blade) , 100 mm (14" blade) |
| Number of movable saws | 3, Optional: 4 |
| Max. material width of pass-through | 900 mm |
| Max. cutting width | 610 mm |
| Min. material length | 610 mm |
| Max. sawblade diameter | Ø355 mm (14") |
| Min. sawblade diameter | Ø305 mm (12") |
| Sawblade bore | Ø90 mm |
| Saw arbor diameter | Ø70 mm |
| Saw arbor speed | 4200 rpm (50HZ) / 4500 rpm (60HZ) |
| Saw arbor motor | 50 , 60 , 75 , 100 or 125HP |
| Feed motor | 5 HP |
| Variable feed speed | 8-60 M/min |
*We reserve the right to amend any of the above specifications without prior notice.
Comparison
| MRS-450M | MRS-610M | |
|---|---|---|
| Max. cutting thickness | 12" / 60 mm, 14" / 100 mm | |
| Number of movable saws | 3, Optional: 4 | |
| Max. material width of pass-through | 750 mm | 900 mm |
| Max. cutting width | 450 mm | 610 mm |
| Min. material length | 610 mm | |
| Max. sawblade diameter | Ø355 mm (14") | |
| Min. sawblade diameter | Ø305 mm (12") | |
| Sawblade bore | Ø90 mm | |
| Saw arbor diameter | Ø70 mm | |
| Saw arbor speed | 4200 rpm (50HZ) / 4500 rpm (60HZ) | |
| Saw arbor motor | 50, 60, 75, 100 or 125HP | |
| Feed motor | 5 HP | |
| Variable feed speed | 8~60 M/min | |
*We reserve the right to amend any of the above specifications without prior notice.
