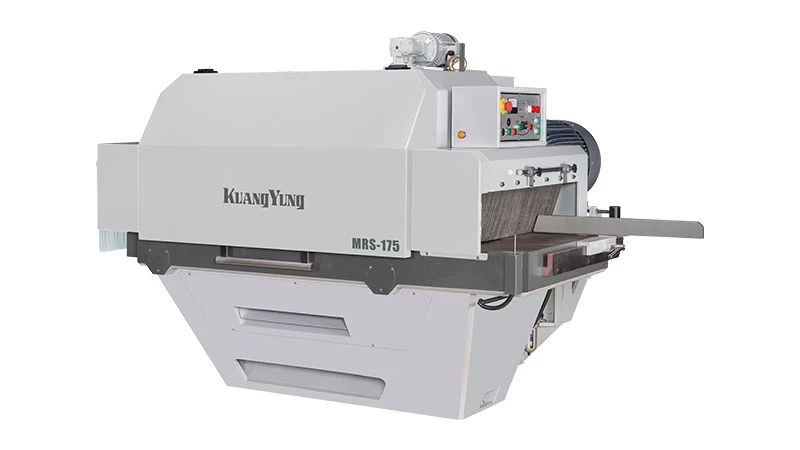

Multiple Rip Saw
MRS-175
Standard Multiple Rip Saw

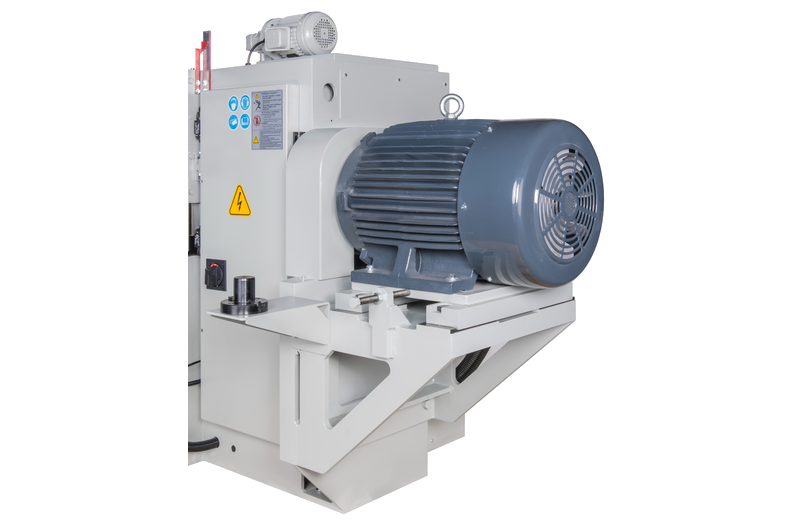

125 HP Extra Powerful Drive
Thickness of Cut up to 175 mm
Ruggedly Constructed Throughout for Maximum Rididity and Stability
Main Features
- Specially desugbed auxiliary powered outfeed roller assures maximum smoothness of workpiece outfeed especially when working on extra thick, heavy and moist wood.
- MRS-175 has a massive cast iron base, composing the majority of total machine weight of 3000 kgs.
- This design provides incredible absorption characteristics under deep cutting, especially while performing thick lumber ripping with a multi-blade set up.
- Precision chain and rails (dip chain) system facilitates accurate cutting operations.
Features of Rip Saw
- Powered Saw Arbor Elevation：The saw arbor elevation is driven by a motor. An independent switch mounted at the outfeed end allows the operator to conveniently check the saw arbor elevating position to avoid sawblades cutting on feed chain pads.

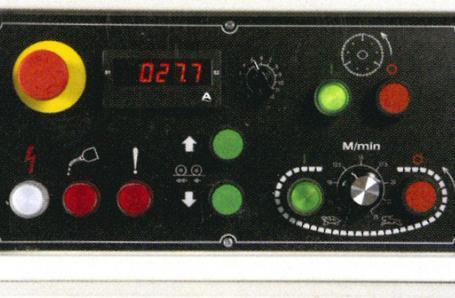

Electrical Amperage Display (for Overload Protection of Saw Motor)
- When the load of the saw motor exceeds the rated amperes, the feed chain will slow down automatically. This prevents the stock push from damaging the saw arbor or damaging the sawblades.
Digitally-controlled Lubricator (Forced Lubrication System for feed chain)
- The central lubrication system ensures a permanent oil film between the chain and the guide rails. It varies the oil volume according to the cutting requirements of various kinds of wood. If there is insufficient oil in the tank, the warning-lamp lights up and the feed chain stops running automatically. This fully ensures the service life of the feed chain and rails.
Saw Blade Replacement by “Sleeve type”, can replace the saw blades quickly.
- The user can change the complete set of saw sleeve with blades and spacers at the same time.
Machine Table and Pressure Roller Hood are made of Casting Iron.
- The rugged structure minimizes the resonance while the machine running in the high speed, reduce the machine vibration.
Specification
| MRS-175 | |
|---|---|
| Max. cutting thickness | 175 mm |
| Max. citting width | 350 mm |
| Distance from column to link chain center | 380 mm |
| Mini. working length | 700 mm |
| Max. sawblade diameter | Ø450 mm (18") |
| Mini. sawblade diameter | Ø355 mm (14") |
| Saw blade bore | Ø70 mm |
| Saw arbor diameter | Ø55 mm |
| Saw arbor speed | 2500 r.p.m |
| Saw arbor motor | 125 HP |
| Feed motor | 3 HP (5 HP optional) |
| Variable feed speeed | 2.5~24 M/min |
| Hold down roller elevating moter | 1/2 HP |
| Dust hood dia. | Ø200 mm |
| Net weight | 3000 kgs |
*We reserve the right to amend any of the above specifications without prior notice.
comparison
| MRS-350 | MRS-155 | MRS-175 | |
|---|---|---|---|
| Dimensions |  |
 |
 |
| Max. cutting thickness | 135 mm | 155 mm | 175 mm |
| Max. citting width | 350 mm | ||
| Distance from column to link chain center | 380 mm | ||
| Mini. working length | 650 mm | 700 mm | |
| Max. sawblade diameter | Ø405 mm (16") | Ø450 mm (18") | |
| Mini. sawblade diameter | Ø250 mm (10") | Ø355 mm (14") | |
| Saw blade bore | Ø70 mm | ||
| Saw arbor diameter | Ø50 mm | Ø55 mm | |
| Saw arbor speed | 3800 r.p.m | 3000 r.p.m(14"~16" Saw Blade) 2500 r.p.m(16"~18" Saw Blade) |
2500 r.p.m |
| Saw arbor motor | 50, 60, 75 ,100 HP | 75 HP or 100 HP | 125 HP |
| Feed speed | 7.5~30 M/min | - | - |
| Variable feed speed | 2.5~24 M/min (optional) | 2.5~24 M/min | |
| Feed motor | 2HP (3HP on request) | 3 HP | 3HP (5HP optional) |
| Hold down roller elevating moter | 0.5 HP | 1 HP | 0.5 HP |
| Net Weight | 2400 kgs | 2700 kgs | 3000 kgs |
| Gross Weight | 2700 kgs | 3000 kgs | 3300 kgs |
*We reserve the right to amend any of the above specifications without prior notice.
