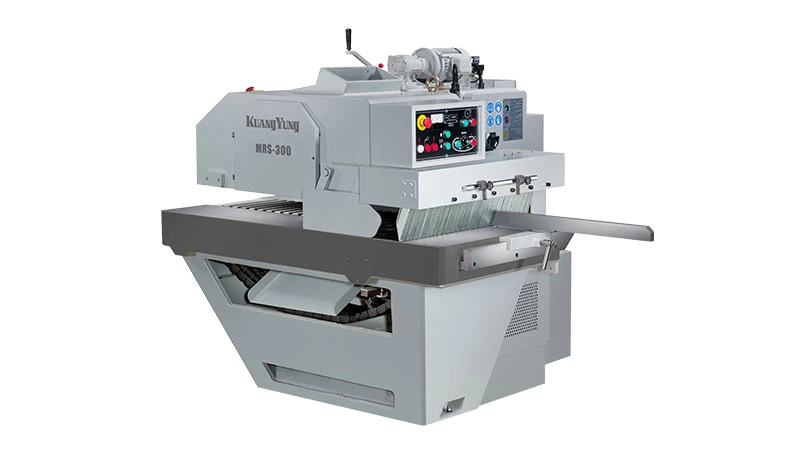

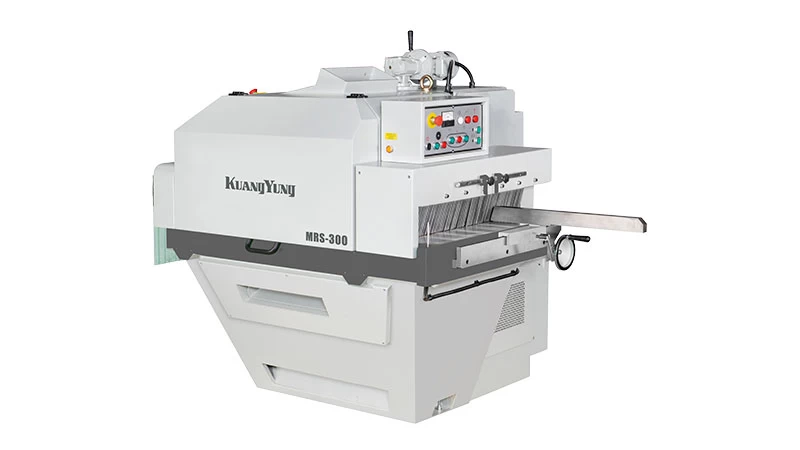

Multiple Rip Saw
MRS-300
Standard Multiple Rip Saw
The Most Popular Model of KuangYungs' Multiple Rip Saws, MRS-300

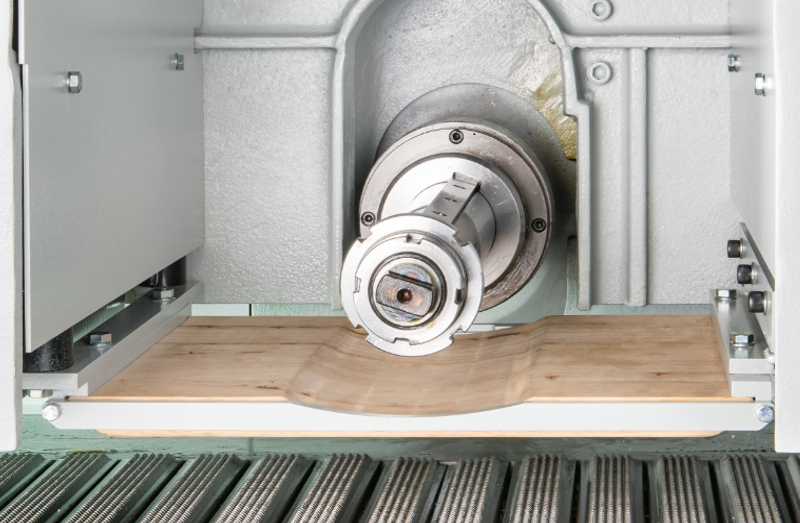

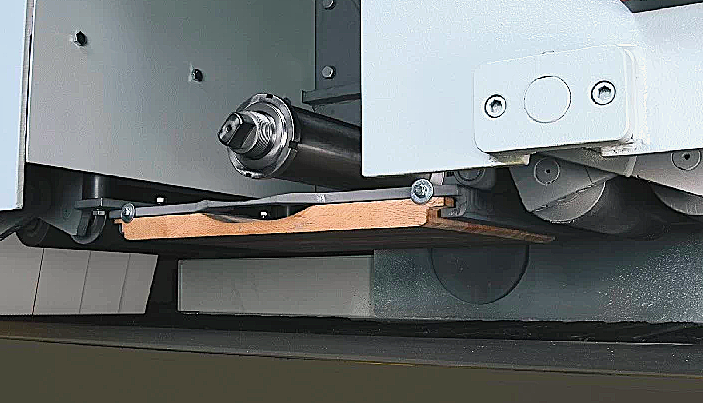

The Specially designed bracket elevation on workpiece pressure system allows for more thickness variation.
Anti-KickBack Guarding System
- Two upper rows and one bottom row of anti-kickback fingers are engineered to provide comprehensive operator security.
rows of pressure rollers
- Each three rows of pressure rollers at the front and rear, combined with a specially designed pressure plate, make it possible to feed panels of 300mm minimum length.
Replaceable chain
- block available for urethane or casting insert (Optional)

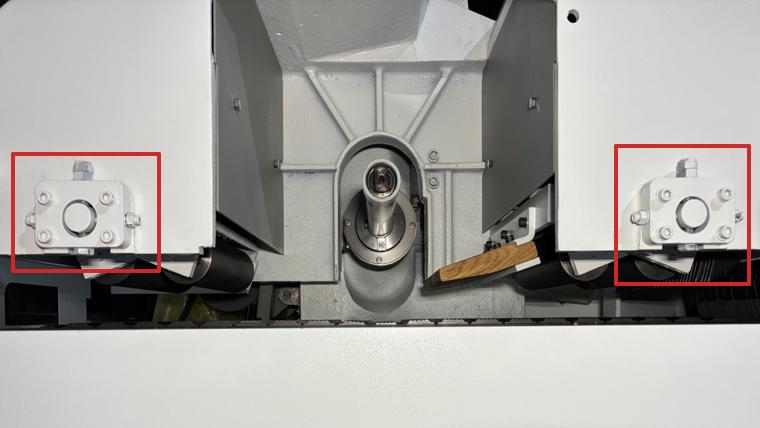

POWERED ELEVATION ROLLERS
ADJUSTABLE LUBRICATION FOR MRS-12, MRS-300
- The adjustable central lubrication system ensures a permanent oil film between the chain and the guide rails. If there is insufficient oil in the oil tank, the warning lamp lights up, and the link chain stops running automatically. This fully ensures the service life of the link chain and rails.

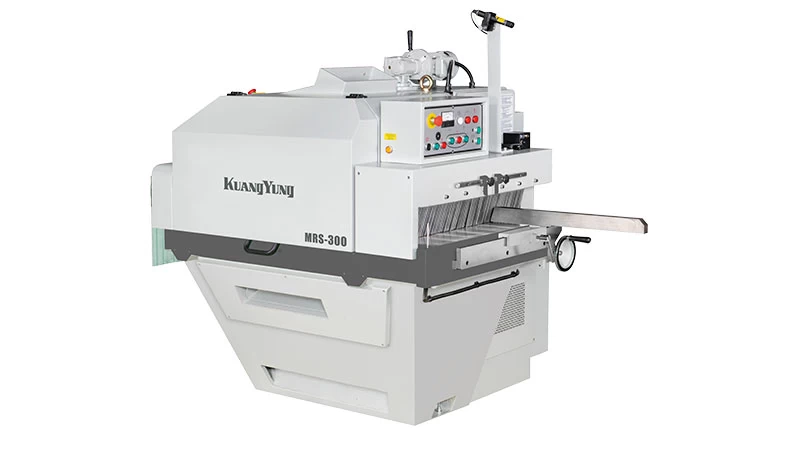

LASER DEVICE (OPTIONAL)
- Provices convenient positioning of cut, which reduces material waste to a minimum.
Specification
| MRS-300 | |
|---|---|
| Max. cutting thickness | 120 mm |
| Max. cutting thickness (with short stock cutting device) | 95 mm (optional) |
| Max. citting width | 300 mm |
| Distance from column to link chain center | 360 mm |
| Mini. working length | 500 mm |
| Mini. working length (with short stock cutting device) | 400 mm (optional) |
| Max. sawblade diameter | Ø380 mm (15") |
| Mini. sawblade diameter | Ø250 mm (10") |
| Saw blade bore | Ø70 mm |
| Saw arbor diameter | Ø50 mm |
| Saw arbor speed | 3800 r.p.m |
| Saw arbor motor | 30, 40, 50, 60 HP |
| Feed speed | 7.5~30 M/min |
| Variable feed speed | 2.5~24 M/min |
| Feed motor | 2HP (3HP on request) |
| Hold down roller elevating moter | 0.5 HP |
| Net weight | 2050 kgs |
| Gross weight | 2350 kgs |
*We reserve the right to amend any of the above specifications without prior notice.
comparison
| MRS-12 | MRS-300 | |
|---|---|---|
| Dimensions |  |
 |
| Max. cutting thickness | 85 mm | 120 mm |
| Max. cutting thickness (with short stock cutting device) | 70 mm (optional) | 95 mm (optional) |
| Max. citting width | 300 mm | 300 mm |
| Distance from column to link chain center | 360 mm | 360 mm |
| Mini. working length | 400 mm | 500 mm |
| Mini. working length (with short stock cutting device) | 300 mm (optional) | 400 mm (optional) |
| Max. sawblade diameter | Ø300 mm (12") | Ø380 mm (15") |
| Mini. sawblade diameter | Ø200 mm (8") | Ø250 mm (10") |
| Saw blade bore | Ø70 mm | Ø70 mm |
| Saw arbor speed | Ø50 mm | Ø50 mm |
| Saw arbor speed | 3800 r.p.m | 3800 r.p.m |
| Saw arbor motor | 30, 40, 50 HP | 30, 40, 50, 60 HP |
| Feed speed | 7.5~30 M/min | 7.5~30 M/min |
| Variable feed speed | 2.5~24 M/min | 2.5~24 M/min |
| Feed motor | 2HP (3HP on request) | 2HP (3HP on request) |
| Hold down roller elevating moter | 0.5 HP | 0.5 HP |
| Net Weight | 2050 kgs | 2050 kgs |
| Gross Weight | 2350 kgs | 2350 kgs |
*We reserve the right to amend any of the above specifications without prior notice.
Find My Machine
Kuang Yung is willing to share our technics and experience with the customers to satisfy their requirements even the customer is trying to use some equipment to improve the saw ripping. We will still complete it though it is a small part. Our most important goal is to implement customer's requirement.
