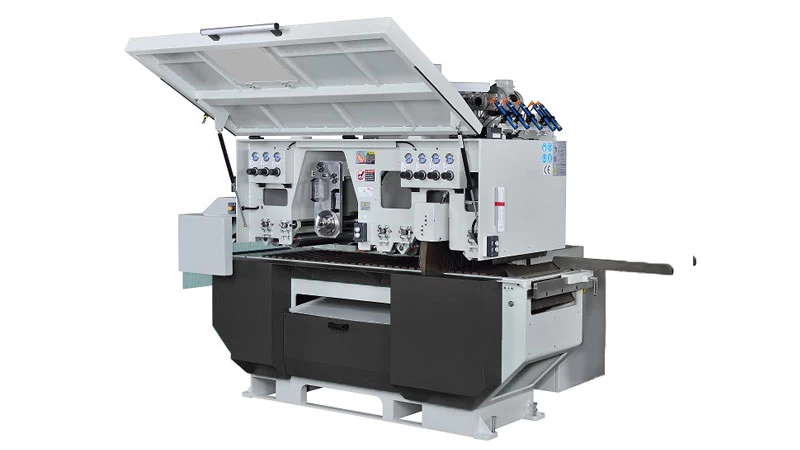

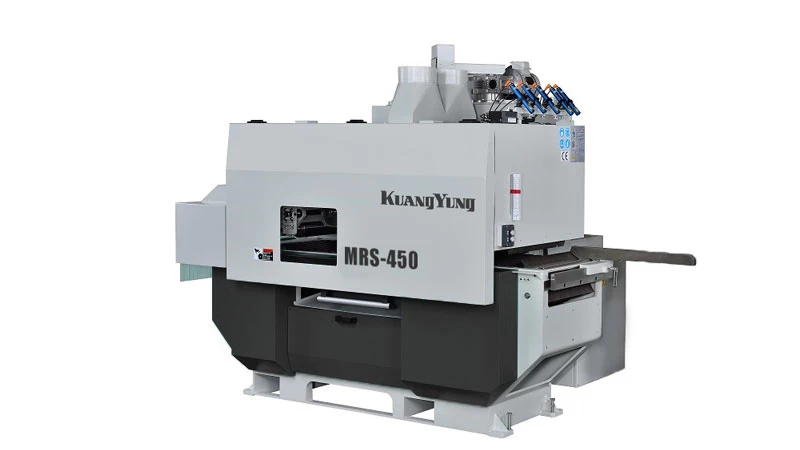

Multiple Rip Saw
MRS-450
Advanced Multiple Rip Saw

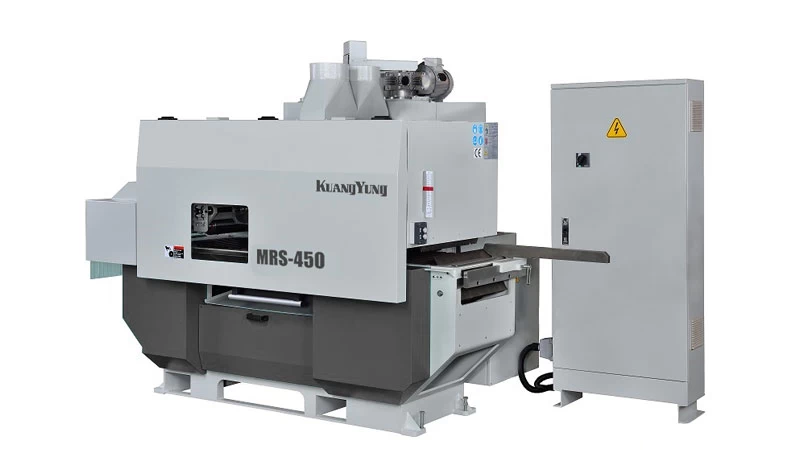

Easy to Learn and Operate friendly industrial personal computer (IPC), controller and touch panel. It makes it easy to configure rip sawing operations.
Main Features
- Extra large 450mm cutting width
Available Models
- Employs a touch screen for easy operation and learning.
- All functions displayed on the screen.
- The IPC computer provides unlimited settings for cutting dimension capacity to meet flexible production demands.
- Convenient troubleshooting is achieved through the computer display.
- Driven by a servomotor, featuring fast movement and outstanding positioning accuracy.
Air-loaded feed rollers
- All feed rollers are air loaded to ensure outstanding stability during cutting and smooth feeding ability.
Mechanical controlled lubrication system
- Provides proper lubrication and prolong lifetime of caterpillar chain and rail.

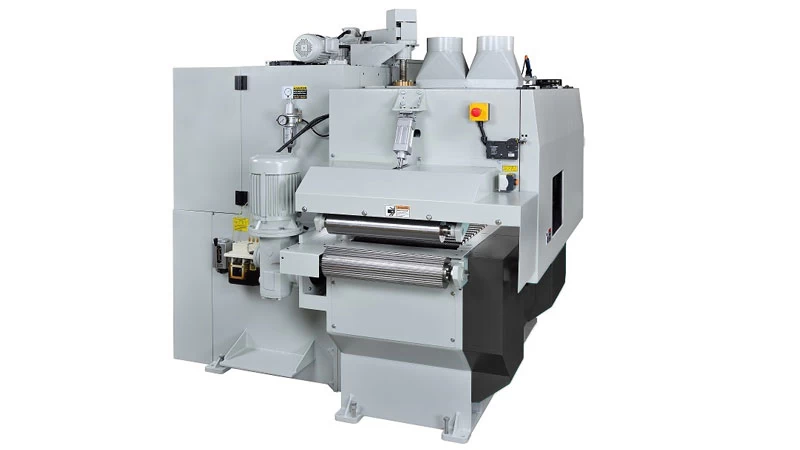

Auxiliary powered outfeed roller
- The additional powered outfeed roller, equipped at the outfeed end, ensures smooth workpiece outfeed even for think, heavy and moist wood.
Ani-kickback guarding system
- Hardened steel anti-kickback fingers system (2 upper rows and 1 bottom row) are engineered for greater operator safety. One row of atni-backward fingers is positioned in front of first roller to prevent the wood from being pushed back during cutting.
Special pressure device(Patened)
- The specially designed pressure device holds wood more stable. As a result, wood can be used directly for composing after cutting.
Specification
| MRS-450 | |
|---|---|
| Max. cutting thickness | 60 mm (Ø12) , 110 mm (Ø14) |
| Max. cutting width | 450 mm |
| Min. material length | 610 mm |
| Link chain width | 480 mm |
| Distance from column to link chain center | 395 mm |
| Max. sawblade diameter | Ø355mm (14") |
| Min. sawblade diameter | Ø305 mm (12") |
| Saw blade bore for sleeve | Ø75 mm |
| Saw arbor diameter | Ø55mm |
| Saw arbor speed | 4500 rpm(60Hz) |
| Saw arbor motor | 75 HP |
| Feed motor | 5HP / 3Ph |
| Variable feed speed | 8~50 M/min |
| Dust hole diameter | Ø100mm×1,Ø200mm×2 |
| Net weight | 5000 kgs |
*We reserve the right to amend any of the above specifications without prior notice.
comparison
| MRS-340 | MRS-450 | MRS-610 | |
|---|---|---|---|
| Dimensions |  |
 |
 |
| Max. cutting thickness | 50mm (10") | 60mm (12") | 75mm (12") |
| 110mm (14") | |||
| Max. citting width | 340mm | 450mm | 610mm |
| Min. material length | 450mm | 610mm | 810mm |
| Max. sawblade diameter | Ø355mm(14") | ||
| Mini. sawblade diameter | Ø250mm(10") | Ø305mm(12") | |
| Saw blade bore | Ø70mm | ||
| Saw arbor diameter | Ø55mm | ||
| Saw arbor speed | 3700~4500 rpm | 4500 rpm | 4200/4500/3800 rpm |
| Saw arbor motor | 50,60HP | 75HP | 50, 60, 75, 100HP |
| Feed motor | 3HP | 5HP/3HP | |
| Variable feed speed | 12~40M/min | 8-50M/min | 6~30M/min |
| Dust hole diameter | Ø100mm×1 Ø200mm×2 | ||
*We reserve the right to amend any of the above specifications without prior notice.
