Multiple Rip Saw

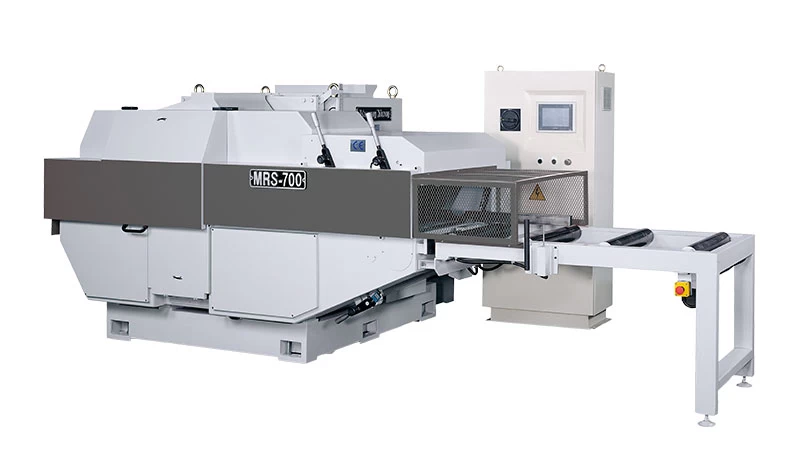

MRS-700
Standard Multiple Rip Saw
A ripping technology breakthrough, with a top and bottom saw arbor design.
Main Features
- This machine is designed and engineered for the first and second stage of material preparation after log is cut.
- Ideally suited for pallet, building materials, and door frame manufacturing.
- Great cutting capacity up to 220mm thick and can replace a band saw.
- Computer control for adjusting the cutting thickness or blade diameter.
- The caterpillar chain drive feeding system.
- 5 rows of anti-kickback fingers and safety guard.
- Variable feed speed ranging from 4 to 25 M/min.
- Automatic feed stop for overload protection.
ISOLATED CONTROL BOX
- The isolated control box is dust and vibration free. A low voltage circuit control system ensures safe operation controls.
UPPER AND LOWER SAW ARBOR CONSTRUCTION
- The machine is designed with upper and lower saw arbors, which give an increased cutting thickness up to 220 mm.
PLC CONTROL (OPTIONAL)
- Computerized positioning of upper and lower saw arbors make changing the thickness of cut and varying the blade diameter easy and safe.
FEED SYSTEM
- This is employed with a link chain feed which ensures great straight-line accuracy and allows for variable speeds at 4~25 M/min. The speed is displayed on a digital readout for added convenience.
Specification
| MRS-700 | |
|---|---|
| Max. cutting thickness | 220 mm |
| Max. citting width | 350 mm |
| Distance from column to link chain center | 345 mm |
| Mini. working length | 900 mm |
| Max. sawblade diameter | Ø350 mm (14") |
| Mini. sawblade diameter | Ø250 mm (10") |
| Saw blade bore | Ø70 mm |
| Saw arbor diameter | Ø50 mm |
| Saw arbor speed | 3500 r.p.m |
| Saw arbor motor | 2 x 50, 60, 75, 100 HP or 125 HP |
| Variable feed speed | 4~25 M/min |
| Feed motor | 5 HP |
| Hold down roller elevating moter | 0.5 HP |
| Net weight | 5150 kgs |
| Gross weight | 5600 kgs |
*We reserve the right to amend any of the above specifications without prior notice.
comparison
| MRS-700 | MRS-712 | MRS-730 | MRS-770 | |
|---|---|---|---|---|
| Saw arbor motor | 50、60、75、100、125 | Mini.30、Max.75 | 50x2 (optional 60, 75, 100, 150) | 75、100、125 |
| Mini. working length | 900 | 850 | 1060 | 600 |
| Max. citting width | 350 | 340 | 350 | |
| Max. cutting thickness | 220 | 185 | 300 | 180 |
| Feed speed | 4~25 | 1~25 | ||
| Feed motor | 5HP | |||
| Max. sawblade diameter | 14"(350mm) | 12"(305mm) | 18"(455mm) | 12"(305mm) |
| Mini. sawblade diameter | 10"(250mm) | 7"(175mm) | 14"(355mm) | 12"(305mm) |
| Saw arbor speed | 3500 | 3500~3800 | 2500 | 3800 |
*We reserve the right to amend any of the above specifications without prior notice.
